LED walls are made of small panels. Each panel is covered in a grid of LEDs. Pixel pitch is the distance, in millimeters, from the center of one LED to the center of the next one.
Smaller number = LEDs packed closer together = sharper image = higher cost.
Bigger number = LEDs spaced farther apart = softer image up close = lower cost.
That’s the whole concept. The tricky part is figuring out which pitch is right for your specific event without either paying for more resolution than you need or ending up with a pixelated wall your audience can see from their chairs.
The formula every calculator is secretly running
Most “pixel pitch calculators” online are just running one of three formulas. Here they are, straight from AVIXA, the industry standards body.
The 10x Rule (fast estimate):
Viewing distance in feet ≈ Pixel Pitch × 10
If your front row sits 25 feet from the wall, a 2.5mm pitch works. If they sit 40 feet back, you can drop to 4mm and save budget.
Average Comfortable Viewing Distance (ACVD):
ACVD in feet = Pixel Pitch × 30
This is the distance where average viewers stop noticing individual pixels and see a continuous image. It’s more generous than the 10x rule.
Visual Acuity Distance (VAD):
VAD in meters = (Pixel Pitch × 3438) / 1000
This is the distance where someone with 20/20 vision can no longer resolve individual pixels. It’s the strictest threshold. Use this for content that will be photographed or filmed.
A table that does the math for you
| Pixel Pitch | Fine-Pitch vs Standard | 10x Rule (min distance) | ACVD (comfortable) | Best For |
|---|---|---|---|---|
| 0.9mm | Fine-pitch | 9 ft | 27 ft | Broadcast studios, LED volumes, very close audiences |
| 1.5mm | Fine-pitch | 15 ft | 45 ft | Front-row corporate events, premium galas, camera-facing |
| 1.9mm | Fine-pitch | 19 ft | 57 ft | Corporate keynotes with camera capture |
| 2.6mm | Fine-pitch | 26 ft | 78 ft | Most corporate events 200-600 pax |
| 2.9mm | Standard | 29 ft | 87 ft | Mid-size conferences, hotel ballroom events |
| 3.9mm | Standard | 39 ft | 117 ft | Large conferences, concerts, far-back audiences |
| 4.8mm | Standard | 48 ft | 144 ft | Outdoor daytime, festivals, large arenas |
| 6.9mm | Outdoor | 69 ft | 207 ft | Outdoor concerts, stadium side screens |
Fine-pitch (below 3mm) costs noticeably more per square foot, and the jump from 2.9mm to 1.9mm typically doubles the budget. If your audience can’t see the difference, you’re spending money for nothing.
Four questions that actually determine your pitch

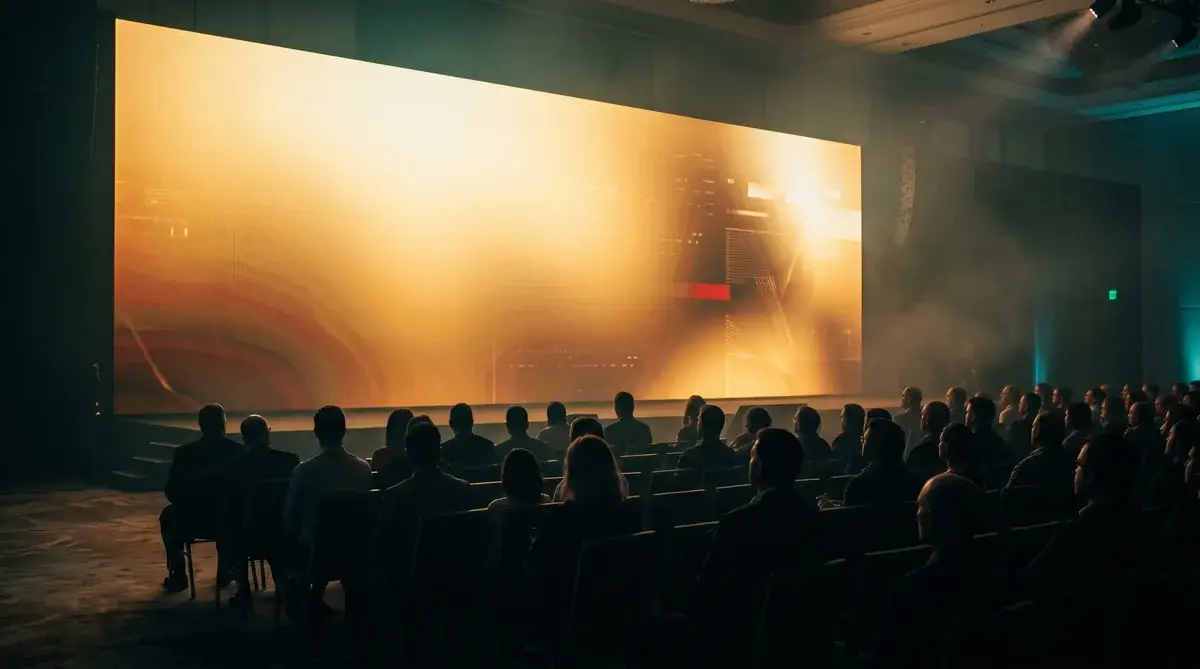

1. How close is the front row?
Measure from the stage edge (where the LED wall sits) to the closest seats. That’s your minimum viewing distance. Apply the 10x rule as a first pass. If your front row is 25 feet out, don’t pay for pitch finer than 2.5mm.
2. What content are you showing?
Moving video forgives more than static text. A pitch that looks great for a sizzle reel might look pixelated for a PowerPoint slide with small type. If there’s spreadsheet content on screen, pick a pitch two steps finer than the 10x rule suggests.
3. Is there a camera in the room?
If the event is livestreamed or recorded, the camera reads the wall differently than a human eye. Cameras pick up pixel grid at distances where the audience sees a clean image. For recorded events, step one pitch size finer than the 10x rule. Also ask your AV vendor about the wall’s refresh rate. Anything below 3,840 Hz on camera can produce visible scan lines unless the camera is synced with the LED wall processor.
4. What’s your budget envelope for video?
Cost per square foot for fine-pitch (under 2mm) runs roughly 2-3x standard pitch (2.9mm or larger). If video is 40 percent of your AV budget, a finer pitch shifts that to 50-60 percent. Most corporate planners don’t need to go below 2.6mm. If somebody recommends 1.5mm for a 200-person ballroom, ask them why.
Indoor vs outdoor: the distance rule still applies
The 10x rule doesn’t change when you go outside. Outdoor events typically use higher pitches (4.8mm, 6.9mm, and up) because the audience is farther from the wall, not because of any different formula. At a festival with the front row 40+ feet back, a 6.9mm wall is the right call. The audience can’t see pixel structure from that distance, and you save real money versus going finer.
What actually changes with outdoor gear:
- Brightness. Outdoor panels run 5,000 to 10,000 nits versus 800 to 1,500 nits for indoor panels. Sunlight competes with the wall, so the wall has to fight back. A 1,500-nit indoor panel in direct sun is invisible.
- Power consumption. Higher brightness plus outdoor weatherproofing means significantly more electricity per square foot. Size your generator accordingly and plan for the fuel burn.
- Physical bulk. Outdoor tiles are IP65-rated against weather. The casings are thicker, heavier, and need different rigging. An outdoor wall the same size as its indoor equivalent weighs more and loads in slower.
Pitch selection still follows the 10x rule. The indoor-vs-outdoor decision is about brightness, power, and build, not pitch math.
Why the “LED wall calculator” tools online often steer you wrong
Most free calculators ask for two inputs: room size and viewing distance. They spit out a recommended pitch. The problem: they don’t ask what you’re showing, whether there’s a camera, how sunlight hits the room, or what your actual budget is.
Plug the same numbers into two different calculators and you’ll get two different answers. Plug your own numbers into the formula above and you’ll get something honest, at least as a starting point.
For a complete sizing pass (wall dimensions, panel count, power load, cable runs, rigging requirements), we run a custom spec sheet for each event. A 5-minute conversation beats an hour on a generic calculator. If you want a real answer for your specific show, request a spec sheet and we’ll size it.
What finer pitch actually buys you
People assume finer pitch = better. It’s more nuanced than that.
Finer pitch buys:
– Sharper image when the audience is close
– More forgiving for small text and detailed graphics
– Better for camera capture, livestreaming, and recording
– Better for photos with people in front of the wall (key light doesn’t create moiré)
Finer pitch doesn’t buy:
– Better image for a distant audience
– Better color or brightness (those are panel-level specs, not pitch)
– Meaningfully different refresh rate (that’s a processor spec)
– Lower cost (it’s always more expensive)
The planners who waste money on finer pitch than they need are usually the ones who got told “more is better” by a vendor with finer-pitch tiles in inventory. It’s worth asking what’s actually in their case. If a vendor only owns 2.6mm and below, they’ll never recommend 3.9mm even when 3.9mm is right.
The cost context nobody talks about
Rough rental cost multipliers, taking 2.9mm as the baseline:
- 3.9mm: ~0.7x (standard pitch, cheapest)
- 2.9mm: 1.0x (baseline)
- 2.6mm: ~1.3x
- 1.9mm: ~2.0x
- 1.5mm: ~2.8x
- 0.9mm: ~5x and up (specialty, often not available as rental)
For a 12’x 7′ wall at 2.9mm running about $6,000/day, going to 1.5mm typically pushes that same wall to $16,000+/day. That’s real money. Make sure the audience can tell the difference before you spend it.
(Full LED wall pricing context is in LED Wall Rental Cost: What You Actually Pay. That post explains where the dollars actually go.)
Frequently Asked Questions
What’s the lowest pixel pitch available?
Sub-1mm pitches exist (0.7mm, 0.9mm) but they’re specialty products, mostly used for broadcast studios and LED volumes for virtual production. For corporate event rental, 1.5mm is typically the finest you’ll encounter in standard inventory.
Can I use a standard-pitch wall for a camera-captured event?
Yes, if viewing distance is generous. A 3.9mm wall works fine on camera at 40+ feet. Closer than that, you’ll see pixel structure in the feed. If you’re capturing interview shots in front of the wall, step down to 2.6mm minimum.
Does pixel pitch affect brightness?
Not directly. Brightness is a panel-level spec (measured in nits). Indoor panels run 800-1,500 nits, outdoor 5,000+ nits. Pitch and brightness are independent variables. You can have a low-brightness fine-pitch wall or a high-brightness coarse-pitch wall.
How does pixel pitch compare to TV resolution?
TVs are measured in total resolution (1080p, 4K). LED walls are measured in pitch because total resolution depends on wall size. A 2.6mm wall that’s 10 feet wide has roughly 1,170 pixels across. Same pitch at 20 feet wide has about 2,340 pixels across. Build a big enough wall and you exceed 4K. Build a small one and it’s SD.
What’s the difference between pixel pitch and pixel density?
Pitch is distance between pixels (mm). Density is pixels per unit area (pixels per square meter). They’re inversely related: smaller pitch = higher density. Most event conversations use pitch because the number is more intuitive.
Can I mix pitches in the same wall?
Technically yes, but you shouldn’t. Mixing tiles with different pitches means different pixel densities, which means visible seams where the pitches meet. Stick with one pitch per wall.
Picking pitch in three steps
- Measure from wall position to front row. That’s your minimum distance.
- Divide by 10. That’s your maximum pitch in mm (approximate).
- Adjust finer if there’s camera capture, small-text content, or close photography. Adjust coarser if the audience is farther back or you’re outdoor.
That’s the whole workflow. Most corporate events in LA hotel ballrooms end up at 2.6mm or 2.9mm, with 1.9mm for premium galas and camera-heavy productions. If a vendor’s recommendation doesn’t match this logic, ask them to walk you through their reasoning.
Want us to size it for your specific event? Request a quote and we’ll send back a spec sheet with the pitch, panel count, power requirements, and cost range, usually within one business day.
